The automatic pressure hose reel to keep your workshop tidy.You can adjust the hose length as required, thus protecting the unused hose from dirt, damage and also prevents tripping hazards.Technical data:- dimentions - length: 350mm, height: 355mm, width: 170mm- weight 4,3 kg: (incl. wall holder)- hose length: 10m (2m hose length between the compressor and reel)- inner diameter: 8mm- outer diameter: 12mm- nominal pressure: max. 15 bar- connection - plug-in sleeve and quick connector (NW 7.2mm)- lockable with 3 steps per rotation- mountable wall bracket - can be swivelled by 180°- special features - oil resistant, kinking and abrasion resistant.

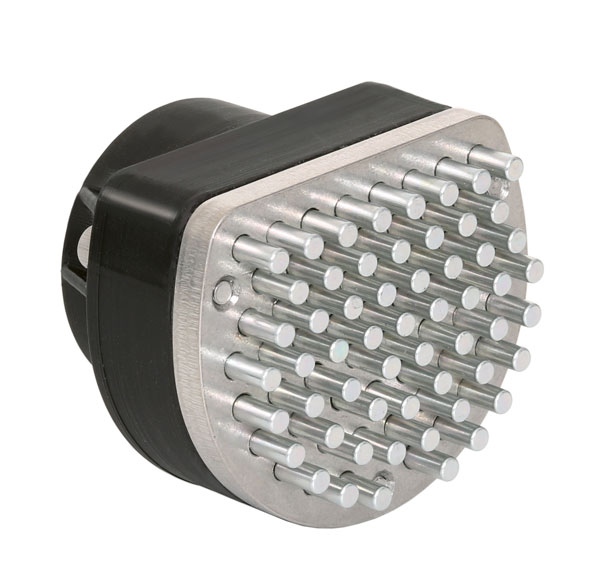

CYCLUS TOOLS axle support adapter G "Hedgehog" | 3D universal clamping | 1 pc This adapter is for the spindle sets sku. 290009 and sku. 290010.This innovative self-adjusting pins plug adapter enables a safe and gentle clamping of almost all thru axles and quick release systems on road bikes,trekking, MTBs, e-bikes.Attention. Please note that this clamping plug adapter can only be properly used in conjunction with another plug type adapter from the CYCLUS TOOLS axle support system: sku from 290011 to 290016.
With the Cyclus Tools compressor air gun, bicycle inner tubes and tubeless tyres can be quickly inflated.Features:- can be connected to a compressor.- analogue pressure guage.- suitable for both Schrader (Auto) and Presta (French) valves.Includes:- 1 x Cyclus Tools compressor air gun.- 1 x SKS air hose.- 1 x pump head SKS for Schrader (Auto) and Presta (Sclaverand/Französische) valves.
Use the CYCLUS TOOLS dropout control gauge to check and correct the exact geometric position of the dropouts of the frame.? To use the caliber tool, remove the wheel from the frame (the fork) and clamp both gauges in the axle mount.? Note the different diameters and installation widths here. (Front wheel: axle diameter 9 mm, installation width 100 mm; rear wheel: axle diameter 10 mm, installation width 130/135 mm).? To do this, move the sleeves on the tool accordingly to ensure a good fit.? If the dropouts are positioned correctly, the face planes of the gauges will be parallel to each other - if the two sides of the tool don´t align, the dropouts must be re-aligned accordingly.

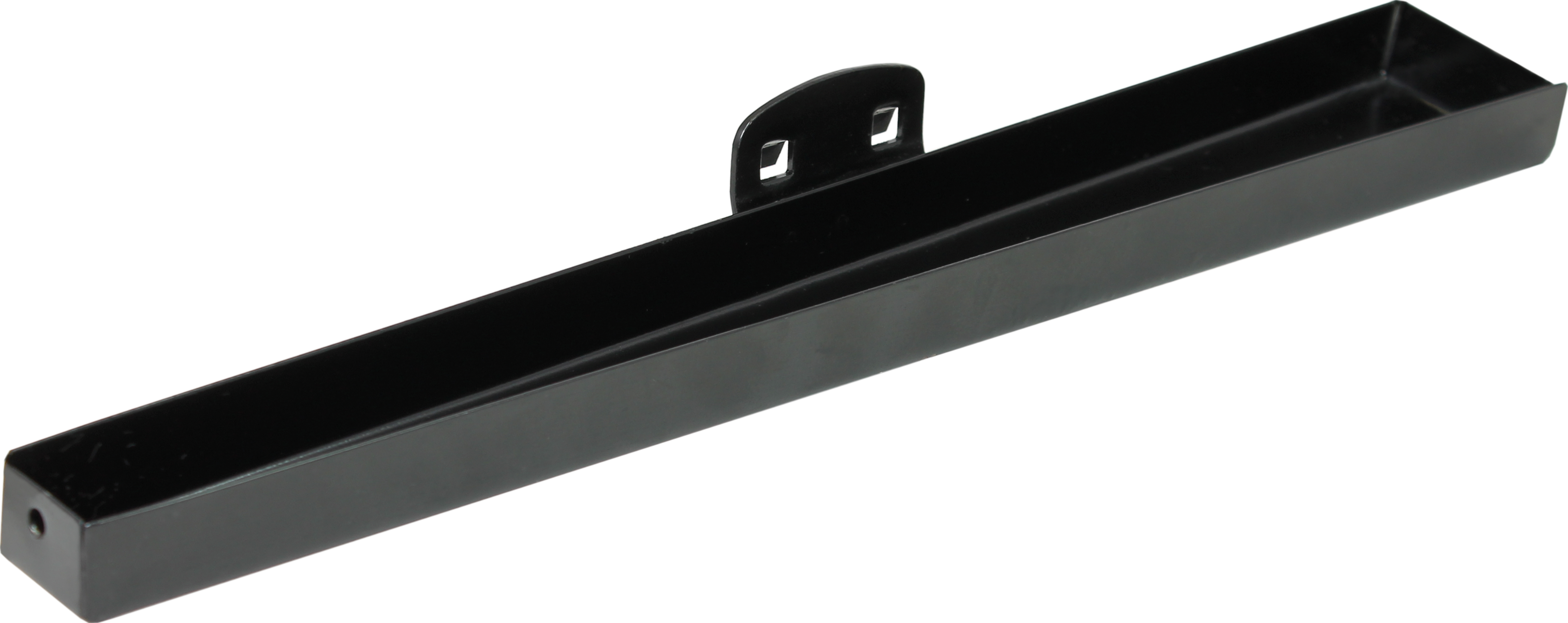

CYCLUS TOOLS hanging tool tray for wall stand (code 720643).Designed for storage of small parts and tools, the tray is 380mm long and 30mm in depth on the left, 50mm on the right. Can be mounted on wall stand art. 720643 or on diagonal stand art. 720644.This hanger is mounted and secured by a saftey plug, to avoid unintentional fall off. Enables you to personalise your work area so parts and small items can be stored off the work bench surfaces, but still within easy reach.

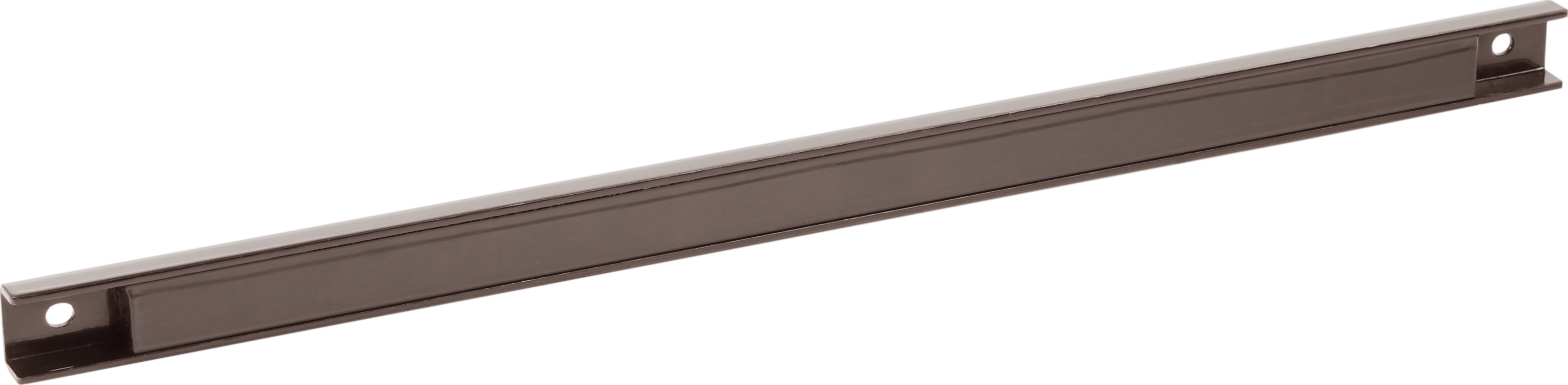

CYCLUS TOOLS magnetic clamp to hold and organise tools.The 470 mm long magnetic clamp is an ideal addition to your workshop, for quickly hanging all magnetic tools tools within reach of your work area. The magnetic clamp can be mounted on wall stand (code: 720643) or on diagonal stand (code: 720644).Measure:Length 470 mmWidth 25 mmHeight 14 mm

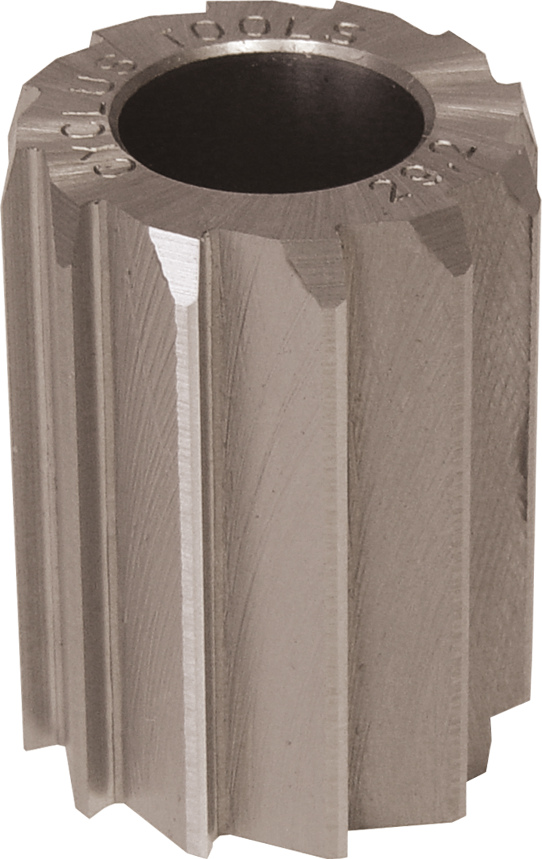

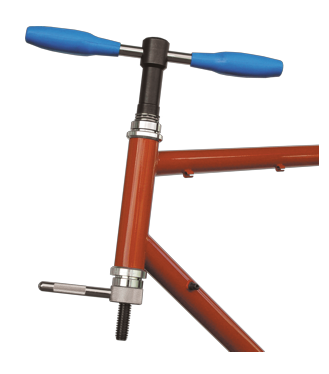

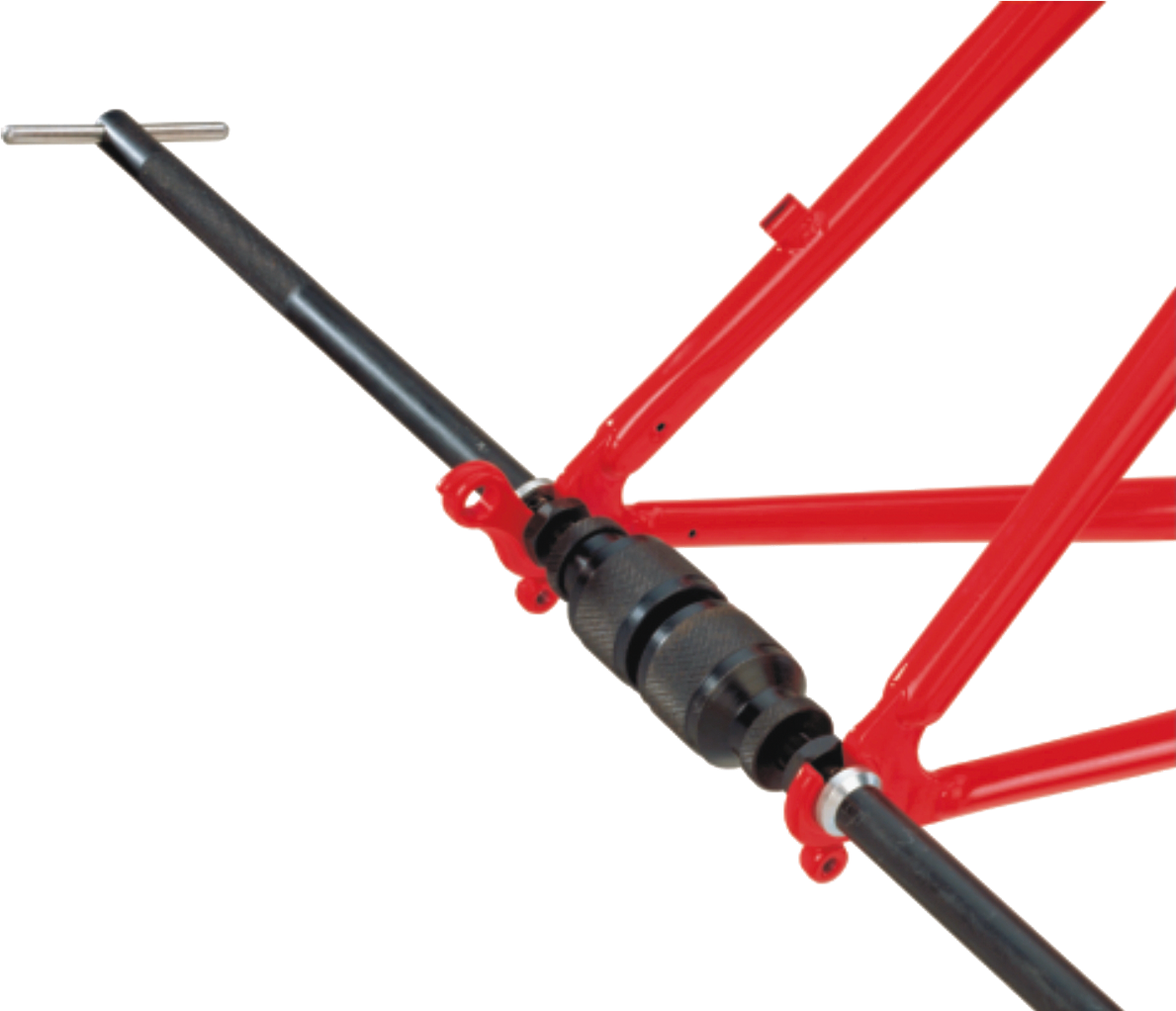

This press tool simultaniously presses top and bottom headset cups into the head tube.Before presing in headset cups, cleaning of surfaces and checking the accuracy of the cup seats inside the head tube is highly recommended.If needed, machine the head tubes with head tube reamer (art. 720005/720006/720046).

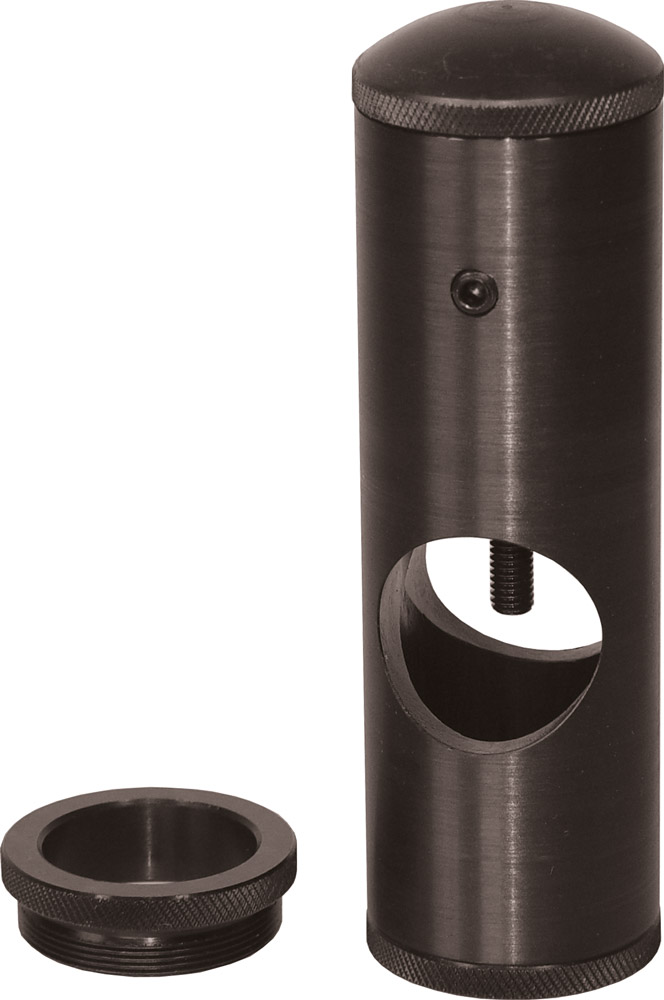

CYCLUS TOOLS Star nut setting tool for inserting star nuts into the fork steerer tube.This impact tool guarantees exact insertion of the Ahead star fangled nut into the steerer tube with a previously defined depth.For inserting 1" and 1 1/8" star nuts:1) Turn the required bushing (1" or 1 1/8") hand tight into the impactor tool.2) Using the circular cross hole, screw the star nut to be mounted onto the central spindle until it stops on the grub screw.3) Insert the tool onto top of the steerer tube and tap it down with a hammer until it stops.4) Remove the impactor from the steerer tube by turning the knurled screw to the left (anticlockwise). The star nut will be left in pace in the steerer tube.
CYCLUS TOOLS thru axle adapters for truing stands - spare pair.These adapters enable the mounting of wheels with thru axles measuring 12 to 24 mm in diameter in a truing stand with conventionalaxle mounts.
CYCLUS TOOLS workshop repair stand The Cyclus Tools workshop stand has a solid frame that holds bikes up to 29" wheel size by the front wheel axle and supports the bottom bracket shell. This allows many repairs, assembly and maintenance work to be easily carried out. The ingenious under tray allows you to have the necessary tools/parts close at hand and helps keep the workshop cleaner. With the axle support adapters, all types of thru-axle and quick release system can be held securely and without damage. The axle support adapters are included in the delivery. Advantages: Bicycle is securely fixed Wheels can turn freely cables are free and easily accessible No frame clamping, so safer for paint and carbon frames The height and bike´s position is adjustable Incl. plastic axle support adapters (A,B,C,D) Specifications: Clamping height: 37,40 inches (950 mm) Tool tray's height: 22,65" (560 mm) Length: 31,50" (800 mm) Width: 19,69" (500 mm)
Single-Stage Direct Drive Reciprocating Air Compressors Features Compact Size, direct drive Durable aluminum body Piston rings of unique design
Robust motor
Reed valve
Aluminum cylinder head and cylinders with deep fins
Handle with rubber grip Benefits Maintenance-friendly, saves power
Low wear and tear with cast-iron sleeve
Better oil control, low oil consumption and carry-over
Withstands voltage fluctuations from 180V to 240V
Low noise
Better cooling
Easy mobility
AdvanteagesSelf retracting & space savingApplicationPneumatic Control and powerlinesAir toolsAssembly work stationsservice stations / Garage equipmentsMachine tools
AdvanteagesSelf retracting & space savingApplicationPneumatic Control and powerlinesAir toolsAssembly work stationsservice stations / Garage equipmentsMachine tools
