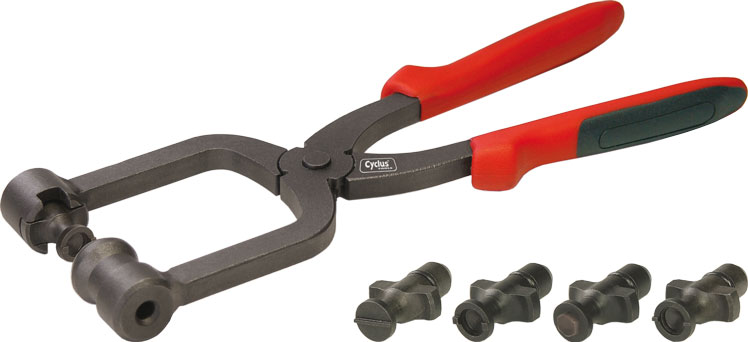

CYCLUS TOOLS Chainring 'r complete set including 5 Bits (A,B,C,D,E).The CYCLUS TOOLS Chainring'r mounting pliers allow safe work on chainring and rear dropout bolts.Ensure exact form fit between bit & chainring bolts and use only a suitable bit during assembly.The following "Bits" (A to E) are included in this set:Bit "A" (720322) constant 1.0 mm notch, separate part for chain ring bolt assembly pliers (code: 720327).For Campagnolo carbon cranks (Chorus / Record / Super Record).Bit "B" (720323) notch, 2.0 mm, separate part for chain ring bolt assembly pliers (code: 720327).For Miche cranks (Team / Pista / Evo / Young).Bit "C" (720324) hexagon 5 mm, separate part for chain ring bolt assembly pliers (code: 720327).For SRAM/Truvativ cranks (XX / X0/ X9 / X7 / X5 / S1400 / S1000) and FSA (K-Force Light / SL-K / Gossamer / Afterburner).Bit "D" (720325) 2-notch 1.5mm, separate part for chain ring bolt assembly pliers (code: 720327).For Shimano cranks (Dura Ace / Ultegra / 105 / XTR / XT / LX / Deore).Bit "E" (720326) 2-notch 1mm, separate part for chain ring bolt assembly pliers (code: 720327).For Campagnolo square taper, Campagnolo Pista, SRAM X-Four, Shimano Dura Ace Pista cranks.

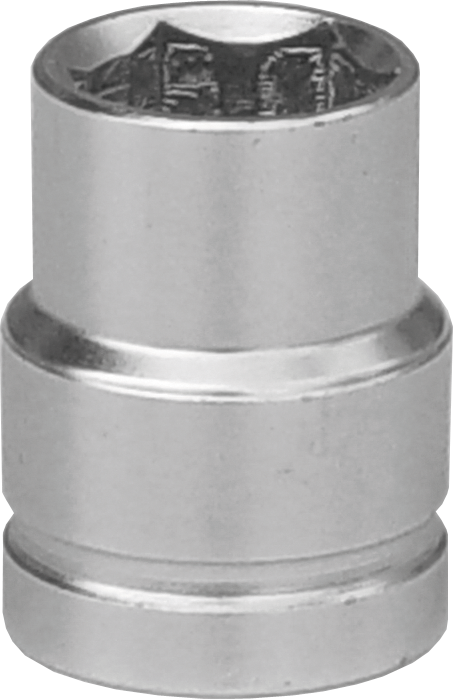

CYCLUS TOOLS crank bolt socket 14 mm3/8" socket

CYCLUS TOOLS crank bolt socket 15 mm.3/8" socket

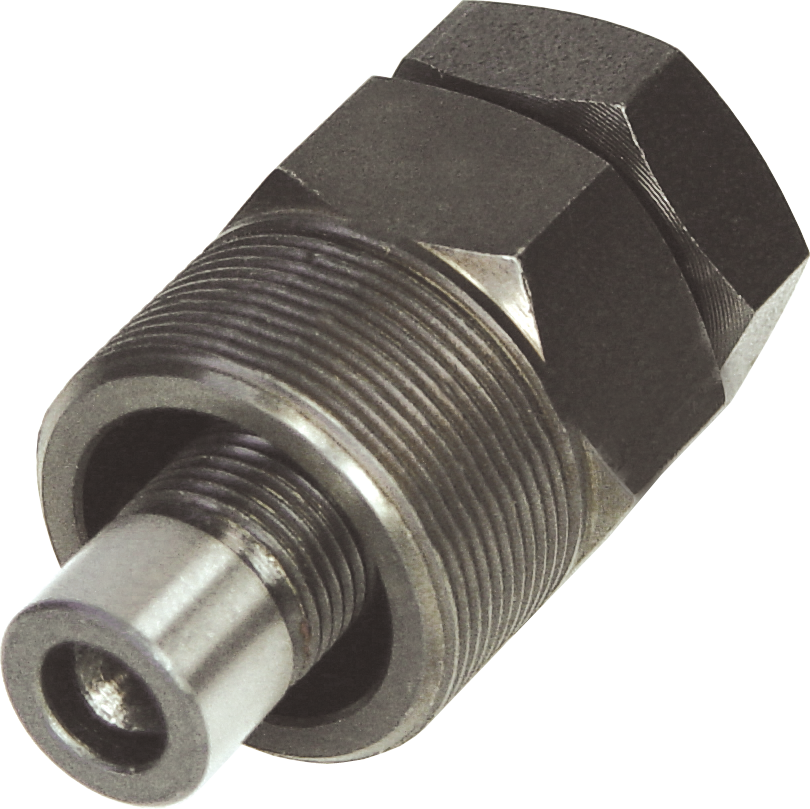

CYCLUS TOOLS crank extractor for square tapered cranks M22 x 1.Crank extractor for square tapered cranks- with barrel bearing- wrench size 22 mm- RH thread

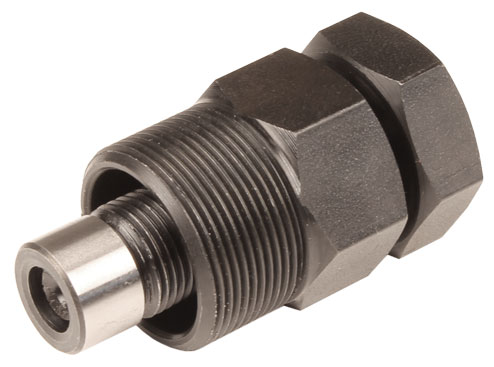

CYCLUS TOOLS crank extractor Oversize    wrench size 22 mm    RH tread    M24 special size.    This tool is also included in the crank repair set (art. 720017)

Crank extractor for Shimano Octalink cranks.    wrench size 22 mm    RH thread    for SHIMANO BB-7700/6500/5500    axle Bosch motors

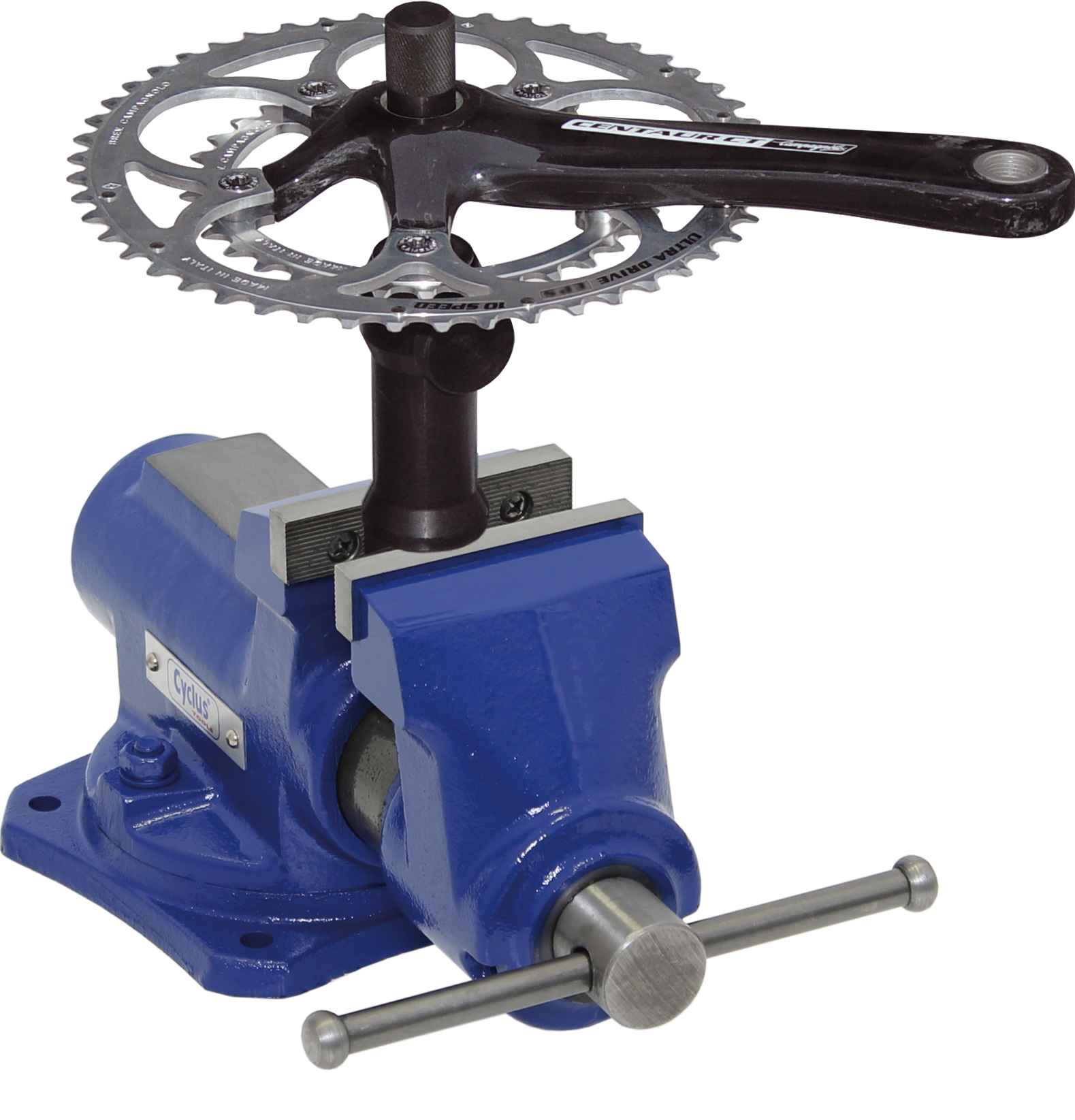

CYCLUS TOOLS Crank holder for fixing the crank during chainring assembly or disassembly.Clamp the crank holder in a vice.Select the appropriate adapter for square taper, Shimano Octalink or Hollotech II.Loosen the knurled screw on the side.Insert the previously selected adapter into the crank holder and then tighten the side knurled screw again to fix the adapter.Put the crank onto the adapter.Fix the crank with the included knurled screw which you screw from above into the thread of the adapter.Includes:crank holder for chainring mounting.Adapter for square taperAdapter for Shimano Octalink / Hollowtech IIKnurled screw to secure the crank

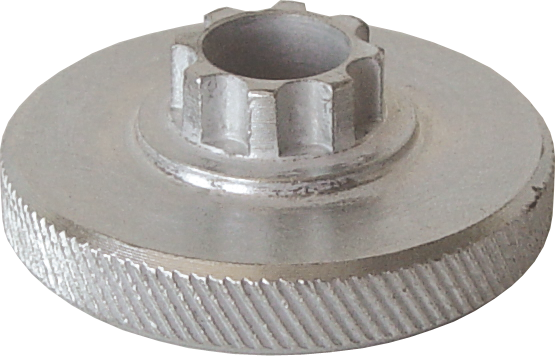

CYCLUS TOOLS crank mounting tool for SHIMANO Hollowtech, 2 FC-M960, M760, M800, FC-7800.    SHIMANO Hollowtech    2 FC-M960, M760, M800, FC-7800

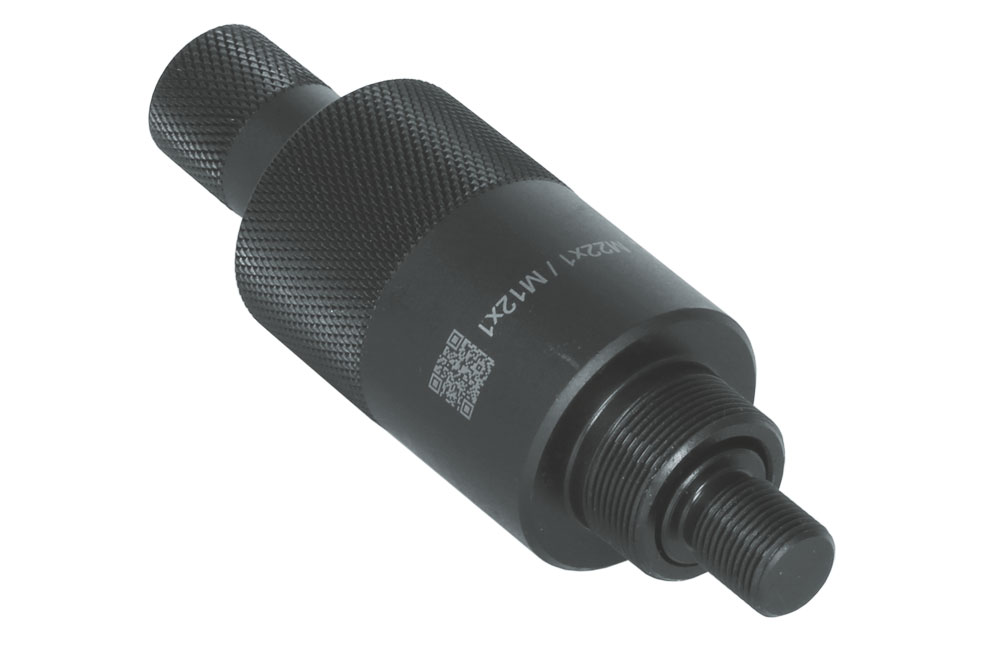

 CYCLUS TOOLS brand new crank puller - with an extra "long stroke crank" When you have securely clamped the crank onto the axle by tightening and torquing the crank bolts, a specific crank puller tool is then needed to safely extract the crank arm from the axle. How is this done when the bottom bracket axle has no fitting conical surfaces, such as on e-bikes? In such a case (= threaded bottom bracket) you need some extra help, as the position of the crank is determined solely by screw connections and the standard removal method can no longer be applied. We have the solution: the new Cyclus crank puller, with a longer stroke extractor (more than 20mm)!The new Cyclus crank puller enables you to remove both older type and newer deeper cranks quickly, safely and professionally.To make the best use of CYCLUS TOOLS new crank puller, the following components are essential:    crank internal thread M22x1    bottom bracket connection thread M12x1Special note: with the help of the CYCLUS TOOLS milling cutter (art. 720235) you can first ream out defective crank threads (M22x1); and then cut a new M24x1 thread by using the CYCLUS TOOLS tap (and die: art. 720245). At the end of the job, you won't just dismantle the crank, but will even repair it as well. Your customer will greatly appreciate this service!Note: make sure you have got the Cyclus Tools fitting guides! Once you cut a new screw thread, you can use the fitting pullers from Cyclus Tools and thus pull off the crank as usual.Further CYCLUS TOOLS articles related to this bottom bracket system:720234 - CYCLUS TOOLS crank puller | crank inside thread M24x1 - M15x1 bottom bracket connecting thread720239 - CYCLUS TOOLS crank puller | crank inside thread M22x1 - M18x1 bottom bracket connecting thread | Cannondale BB30720241 - CYCLUS TOOLS crank puller | crank inside thread M22x1 - M12x1 bottom bracket connecting thread720242 - CYCLUS TOOLS crank puller | crank inside thread M24x1 - M12x1 bottom bracket connecting thread720243 - CYCLUS TOOLS crank puller | crank inside thread M22x1 - M10x1 bottom bracket connecting thread720244 - CYCLUS TOOLS crank puller | crank inside thread M24x1 - M10x1 bottom bracket connecting thread720013 - CYCLUS TOOLS tap for internal crank thread M22x1 | for re-cutting720235 - CYCLUS TOOLS cutter core hole M24 repair thread720245 - CYCLUS TOOLS tap for internal crank thread M24x1 | for new-cutting720370 - CYCLUS TOOLS thread guide M8x1720371 - CYCLUS TOOLS thread guide M15x1720372 - CYCLUS TOOLS thread guide M12x1720373 - CYCLUS TOOLS thread guide M10x1

CYCLUS TOOLS brand new crank puller - with an extra "long stroke crank" When you have securely clamped the crank onto the axle by tightening and torquing the crank bolts, a specific crank puller tool is then needed to safely extract the crank arm from the axle. How is this done when the bottom bracket axle has no fitting conical surfaces, such as on e-bikes? In such a case (= threaded bottom bracket) you need some extra help, as the position of the crank is determined solely by screw connections and the standard removal method can no longer be applied. We have the solution: the new Cyclus crank puller, with a longer stroke extractor (more than 20mm)!The new Cyclus crank puller enables you to remove both older type and newer deeper cranks quickly, safely and professionally. To make the best use of CYCLUS TOOLS new crank puller, the following components are essential:    crank internal thread M22x1    bottom bracket connection thread M10x1 Special note: with the help of the CYCLUS TOOLS milling cutter (art. 720235) you can first ream out defective crank threads (M22x1); and then cut a new M24x1 thread by using the CYCLUS TOOLS tap (and die: art. 720245). At the end of the job, you won't just dismantle the crank, but will even repair it as well. Your customer will greatly appreciate this service! Note: make sure you have got the Cyclus Tools fitting guides! Once you cut a new screw thread, you can use the fitting pullers from Cyclus Tools and thus pull off the crank as usual.Further CYCLUS TOOLS articles related to this bottom bracket system:720234 - CYCLUS TOOLS crank puller | crank inside thread M24x1 - M15x1 bottom bracket connecting thread720239 - CYCLUS TOOLS crank puller | crank inside thread M22x1 - M18x1 bottom bracket connecting thread | Cannondale BB30720241 - CYCLUS TOOLS crank puller | crank inside thread M22x1 - M12x1 bottom bracket connecting thread720242 - CYCLUS TOOLS crank puller | crank inside thread M24x1 - M12x1 bottom bracket connecting thread720243 - CYCLUS TOOLS crank puller | crank inside thread M22x1 - M10x1 bottom bracket connecting thread720244 - CYCLUS TOOLS crank puller | crank inside thread M24x1 - M10x1 bottom bracket connecting thread720013 - CYCLUS TOOLS tap for internal crank thread M22x1 | for re-cutting720235 - CYCLUS TOOLS cutter core hole M24 repair thread720245 - CYCLUS TOOLS tap for internal crank thread M24x1 | for new-cutting720370 - CYCLUS TOOLS thread guide M8x1720371 - CYCLUS TOOLS thread guide M15x1720372 - CYCLUS TOOLS thread guide M12x1720373 - CYCLUS TOOLS thread guide M10x1If you have any further questions, please do not hesitate to contact us.

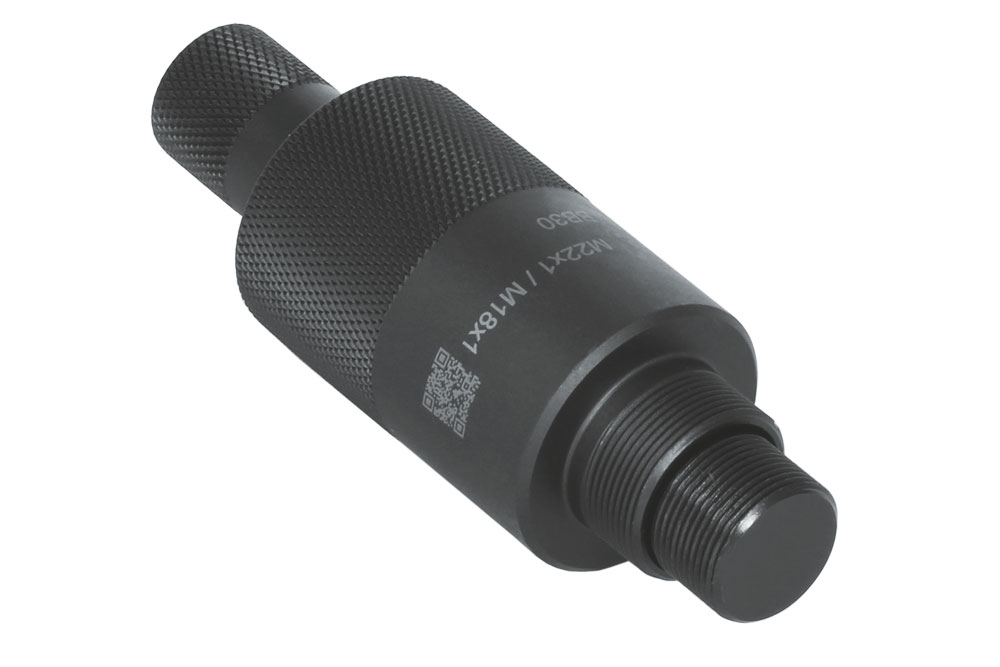

 CYCLUS TOOLS brand new crank puller - with an extra "long stroke crank"When you have securely clamped the crank onto the axle by tightening and torquing the crank bolts, a specific crank puller tool is then needed to safely extract the crank arm from the axle.How is this done when the bottom bracket axle has no fitting conical surfaces, such as on e-bikes? In such a case (= threaded bottom bracket) you need some extra help, as the position of the crank is determined solely by screw connections and the standard removal method can no longer be applied.We have the solution: the new Cyclus crank puller, with a longer stroke extractor (more than 20mm)!The new Cyclus crank puller enables you to remove both older type and newer deeper cranks quickly, safely and professionally.To make the best use of CYCLUS TOOLS new crank puller, the following components are essential:    crank internal thread M22x1    bottom bracket connection thread M18x1 | Cannondale BB33 Special note: with the help of the CYCLUS TOOLS milling cutter (art. 720235) you can first ream out defective crank threads (M22x1); and then cut a new M24x1 thread by using the CYCLUS TOOLS tap (and die: art. 720245). At the end of the job, you won't just dismantle the crank, but will even repair it as well. Your customer will greatly appreciate this service! Note: make sure you have got the Cyclus Tools fitting guides! Once you cut a new screw thread, you can use the fitting pullers from Cyclus Tools and thus pull off the crank as usual. Further CYCLUS TOOLS articles related to this bottom bracket system:720234 - CYCLUS TOOLS crank puller | crank inside thread M24x1 - M15x1 bottom bracket connecting thread720239 - CYCLUS TOOLS crank puller | crank inside thread M22x1 - M18x1 bottom bracket connecting thread | Cannondale BB30720241 - CYCLUS TOOLS crank puller | crank inside thread M22x1 - M12x1 bottom bracket connecting thread720242 - CYCLUS TOOLS crank puller | crank inside thread M24x1 - M12x1 bottom bracket connecting thread720243 - CYCLUS TOOLS crank puller | crank inside thread M22x1 - M10x1 bottom bracket connecting thread720244 - CYCLUS TOOLS crank puller | crank inside thread M24x1 - M10x1 bottom bracket connecting thread720013 - CYCLUS TOOLS tap for internal crank thread M22x1 | for re-cutting720235 - CYCLUS TOOLS cutter core hole M24 repair thread720245 - CYCLUS TOOLS tap for internal crank thread M24x1 | for new-cutting720370 - CYCLUS TOOLS thread guide M8x1720371 - CYCLUS TOOLS thread guide M15x1720372 - CYCLUS TOOLS thread guide M12x1720373 - CYCLUS TOOLS thread guide M10x1

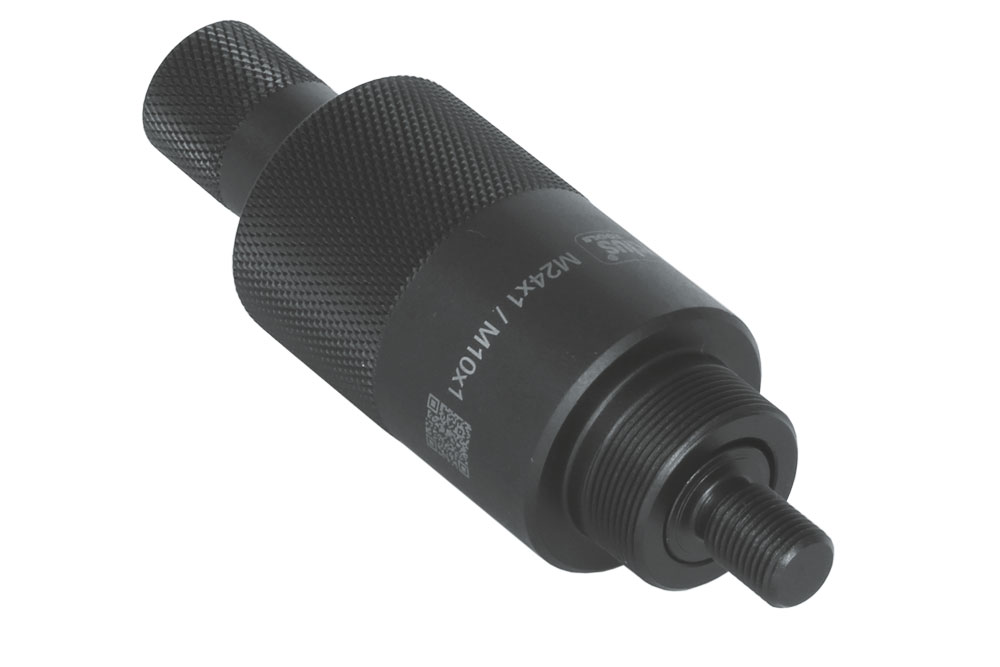

 CYCLUS TOOLS brand new crank puller - with an extra "long stroke crank"When you have securely clamped the crank onto the axle by tightening and torquing the crank bolts, a specific crank puller tool is then needed to safely extract the crank arm from the axle.How is this done when the bottom bracket axle has no fitting conical surfaces, such as on e-bikes? In such a case (= threaded bottom bracket) you need some extra help, as the position of the crank is determined solely by screw connections and the standard removal method can no longer be applied.We have the solution: the new Cyclus crank puller, with a longer stroke extractor (more than 20mm)!The new Cyclus crank puller enables you to remove both older type and newer deeper cranks quickly, safely and professionally.To make the best use of CYCLUS TOOLS new crank puller, the following components are essential:    crank internal thread M24x1    bottom bracket connection thread M10x1Special note: with the help of the CYCLUS TOOLS milling cutter (art. 720235) you can first ream out defective crank threads (M22x1); and then cut a new M24x1 thread by using the CYCLUS TOOLS tap (and die: art. 720245). At the end of the job, you won't just dismantle the crank, but will even repair it as well. Your customer will greatly appreciate this service!Note: make sure you have got the Cyclus Tools fitting guides! Once you cut a new screw thread, you can use the fitting pullers from Cyclus Tools and thus pull off the crank as usual.Further CYCLUS TOOLS articles related to this bottom bracket system:720234 - CYCLUS TOOLS crank puller | crank inside thread M24x1 - M15x1 bottom bracket connecting thread720239 - CYCLUS TOOLS crank puller | crank inside thread M22x1 - M18x1 bottom bracket connecting thread | Cannondale BB30720241 - CYCLUS TOOLS crank puller | crank inside thread M22x1 - M12x1 bottom bracket connecting thread720242 - CYCLUS TOOLS crank puller | crank inside thread M24x1 - M12x1 bottom bracket connecting thread720243 - CYCLUS TOOLS crank puller | crank inside thread M22x1 - M10x1 bottom bracket connecting thread720244 - CYCLUS TOOLS crank puller | crank inside thread M24x1 - M10x1 bottom bracket connecting thread720013 - CYCLUS TOOLS tap for internal crank thread M22x1 | for re-cutting720235 - CYCLUS TOOLS cutter core hole M24 repair thread720245 - CYCLUS TOOLS tap for internal crank thread M24x1 | for new-cutting720370 - CYCLUS TOOLS thread guide M8x1720371 - CYCLUS TOOLS thread guide M15x1720372 - CYCLUS TOOLS thread guide M12x1720373 - CYCLUS TOOLS thread guide M10x1

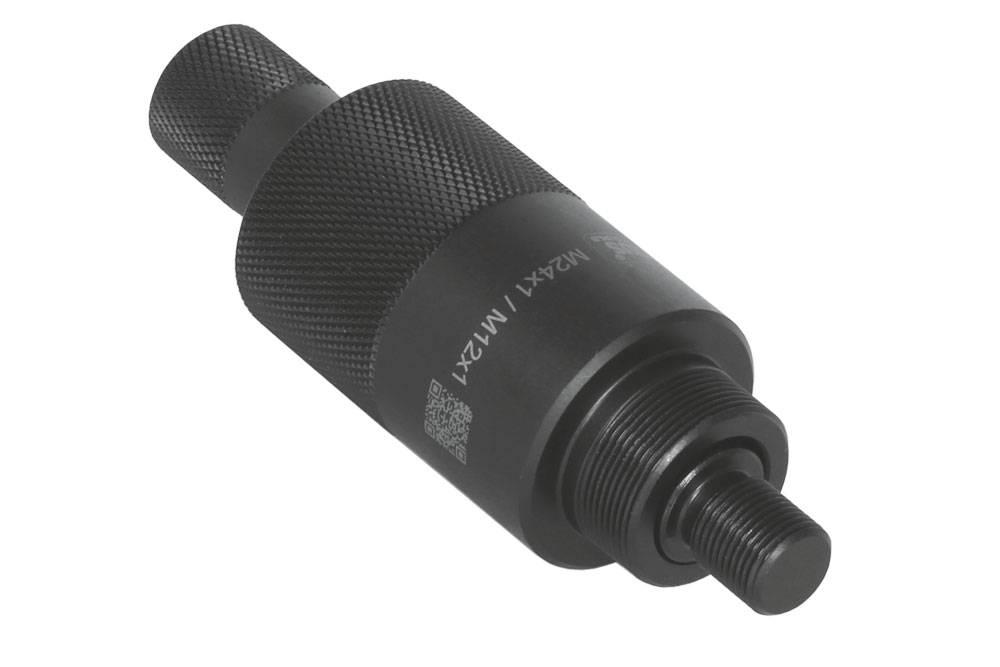

CYCLUS TOOLS brand new crank puller - with an extra "long stroke crank"When you have securely clamped the crank onto the axle by tightening and torquing the crank bolts, a specific crank puller tool is then needed to safely extract the crank arm from the axle.How is this done when the bottom bracket axle has no fitting conical surfaces, such as on e-bikes? In such a case (= threaded bottom bracket) you need some extra help, as the position of the crank is determined solely by screw connections and the standard removal method can no longer be applied.We have the solution: the new Cyclus crank puller, with a longer stroke extractor (more than 20mm)!The new Cyclus crank puller enables you to remove both older type and newer deeper cranks quickly, safely and professionally.To make the best use of CYCLUS TOOLS new crank puller, the following components are essential:    crank internal thread M24x1    bottom bracket connection thread M12x1Special note: with the help of the CYCLUS TOOLS milling cutter (art. 720235) you can first ream out defective crank threads (M22x1); and then cut a new M24x1 thread by using the CYCLUS TOOLS tap (and die: art. 720245). At the end of the job, you won't just dismantle the crank, but will even repair it as well. Your customer will greatly appreciate this service!Note: make sure you have got the Cyclus Tools fitting guides! Once you cut a new screw thread, you can use the fitting pullers from Cyclus Tools and thus pull off the crank as usual.Further CYCLUS TOOLS articles related to this bottom bracket system:720234 - CYCLUS TOOLS crank puller | crank inside thread M24x1 - M15x1 bottom bracket connecting thread720239 - CYCLUS TOOLS crank puller | crank inside thread M22x1 - M18x1 bottom bracket connecting thread | Cannondale BB30720241 - CYCLUS TOOLS crank puller | crank inside thread M22x1 - M12x1 bottom bracket connecting thread720242 - CYCLUS TOOLS crank puller | crank inside thread M24x1 - M12x1 bottom bracket connecting thread720243 - CYCLUS TOOLS crank puller | crank inside thread M22x1 - M10x1 bottom bracket connecting thread720244 - CYCLUS TOOLS crank puller | crank inside thread M24x1 - M10x1 bottom bracket connecting thread720013 - CYCLUS TOOLS tap for internal crank thread M22x1 | for re-cutting720235 - CYCLUS TOOLS cutter core hole M24 repair thread720245 - CYCLUS TOOLS tap for internal crank thread M24x1 | for new-cutting720370 - CYCLUS TOOLS thread guide M8x1720371 - CYCLUS TOOLS thread guide M15x1720372 - CYCLUS TOOLS thread guide M12x1720373 - CYCLUS TOOLS thread guide M10x1If you have any further questions, please do not hesitate to contact us.

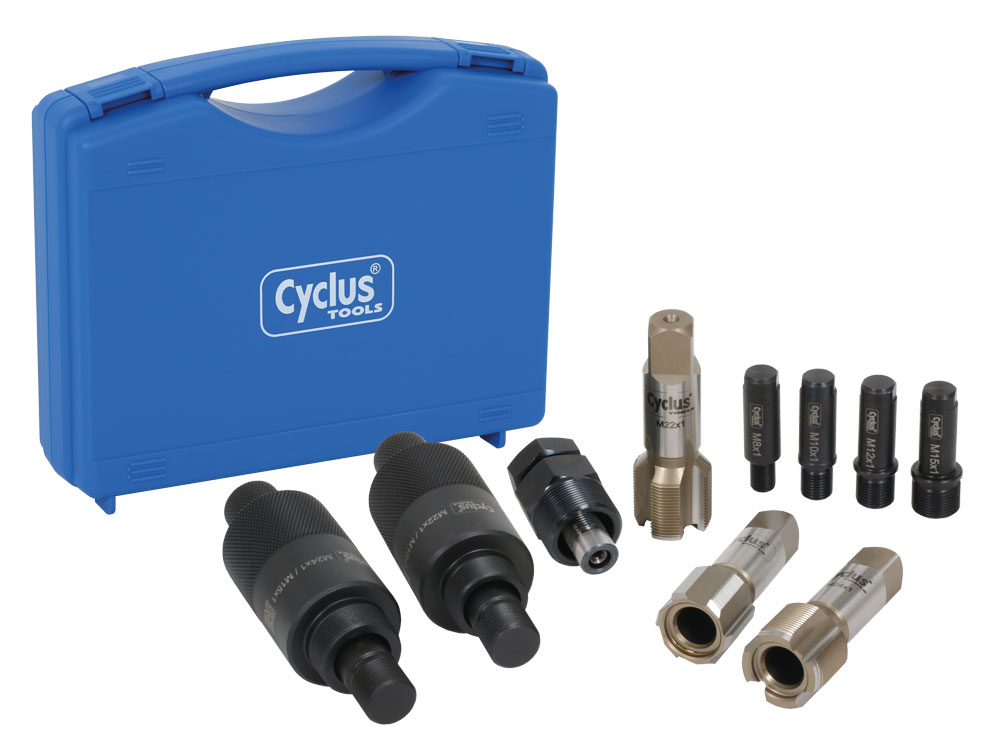

CYCLUS TOOLS Tap and die for cutting internal M24x1 crank thread.Set with new type of extra long crank puller tools. Currently, especially e-bikes have bottom bracket axles that no longer have conical surfaces. Instead, the seating of the crank is done solely by stops and screw connections. The position of the stops is usually too long for crank loosening or removal using conventional tools, so the "long working stroke" tool has been developed. With this tool set you can dismantle cranks from corresponding axles. The existing large working stroke (more than 20 mm) makes the puller universally applicable. No matter whether you have a pressed on, or a new type crank with screwed stop crank seats, both systems can be quickly, safely and professionally pulled off. You can recut existing crank threads with the M22x1 tap or cut a new, larger thread in the crank with the M24 core hole cutter and the M24x1 recutter.To work accurately and safely in the process, the set includes the matching guides.  The following dimensions are crucial for the use of the Cyclus Tools extractor:? the existing bottom bracket connection thread (eg M15x1).? the crank internal thread (e.g. M22x1). Set Contents:? 720013 tap for crank internal thread M22x1 | for re-tapping.? 720245 Tap for crank internal thread M24x1 | for recutting? 720233 Crank puller M22x1 - M15x1? 720234 Crank puller M24x1 - M15x1? 720235 Cutter core hole diameter M24 repair thread? 720060 Crank puller for repair set - thread special size M24? 720374 Thread guide set | inner bearing connection thread M8x1, M10x1, M12x1, M15x1 Optional to the set, we carry other crank pullers with combinations of the inner bearing connection thread and crank internal thread. E.g. Article 720243 with crank internal thread M22x1 and inner bearing connection thread M10x1.Make sure that you are using the right cutting oil when milling or cutting!Ask us, we are happy to assist you.
